ORACLE Lighting High Powered LED Headlights (PAIR): Jeep Wrangler (18-24) / Gladiator (20-24)

ORACLE Lighting High Powered LED Headlights

2018–2024 Jeep Wrangler / 2020–2024 Jeep Gladiator

5769J-504

Overview:

The ORACLE Lighting High Powered LED Headlights are a premium upgrade designed specifically for Jeep Wrangler JL models from 2018 to 2024 and Jeep Gladiator JT models from 2020 to 2024. This complete pair of 7-inch LED headlights offers a direct replacement for factory halogen or LED units, delivering superior brightness and enhanced nighttime visibility without any need for cutting or modifying your vehicle’s wiring harness.

Ideal for Jeep enthusiasts seeking reliable, high-performance lighting, these headlights provide a crisp, cool white 6000K color temperature that improves road illumination while reducing glare for oncoming traffic. The plug-and-play design ensures a straightforward installation, making it accessible for both professional installers and DIYers.

Key Features:

Engineered for durability and performance, these headlights incorporate advanced LED technology and thoughtful design elements:

• High-powered Phillips Luxeon ZES LED chips delivering 3600 lumens on high beam and 2200 lumens on low beam for exceptional brightness
• Wide beam pattern with a sharp cut-off line to maximize road visibility without blinding other drivers
• Integrated constant current LED driver for improved reliability and longer LED lifespan
• Vertical and horizontal headlight adjustment for precise beam alignment
• Die-cast housing with corrosion-resistant coating for rugged durability in off-road conditions
• Hard-coated polycarbonate lens for impact resistance and clarity
• Wide input voltage range (12V–24V) to protect against voltage spikes and ensure stable operation
• Optional colored LED halo rings available for added customization
• DOT and SAE certified for street legality
• Low current draw: 2.50 amps at 12V DC and 1.30 amps at 24V DC

Construction & Design:

Built to withstand the rigors of off-road and daily driving, the ORACLE Lighting LED headlights feature a robust die-cast aluminum housing finished with a corrosion-resistant coating. This solid-state design efficiently manages heat dissipation, allowing for a higher LED count without thermal degradation. The upgraded Phillips Luxeon ZES LEDs provide a high efficacy of 130 lumens per watt, producing bright, cool white light with lower thermal output compared to older LED technologies.

The lens is crafted from hard-coated polycarbonate, offering excellent resistance to impacts, scratches, and UV damage. The internal electronics include a constant current driver that stabilizes power delivery to the LEDs, enhancing longevity and consistent performance over time.

Installation & Fitment:

Installation is straightforward with vehicle-specific plug-and-play connectors tailored for Jeep Wrangler JL and Gladiator JT models, eliminating the need for splicing or cutting factory wiring. The kit includes vertical and horizontal adjustment mechanisms to fine-tune beam direction, ensuring optimal road illumination and compliance with traffic safety standards.

Note that the DRL (Daytime Running Light) wire cannot be used as a power source. For manual control of the LED accessory during daytime driving, tapping into the park lights is recommended. For full automatic control, fuse F52 in the engine compartment fuse panel should be used.

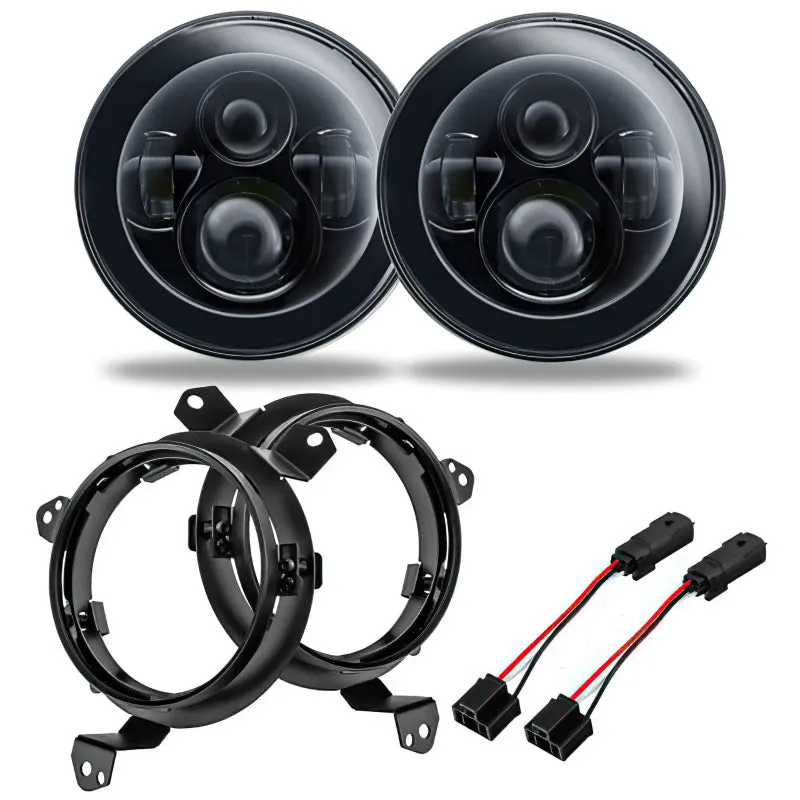

What's Included:

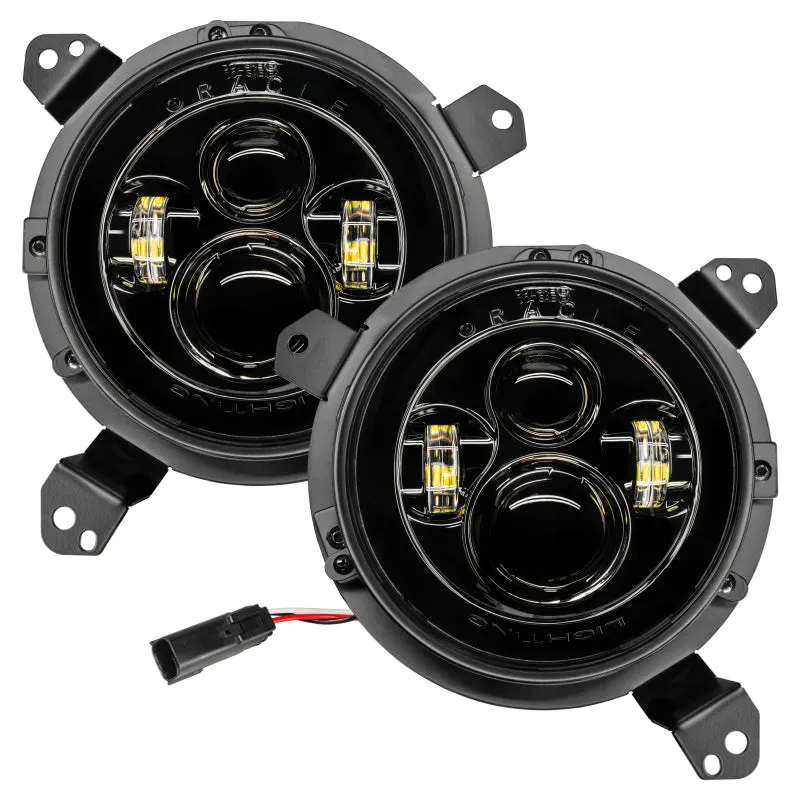

• Pair of ORACLE Lighting 7" High Powered LED Headlights

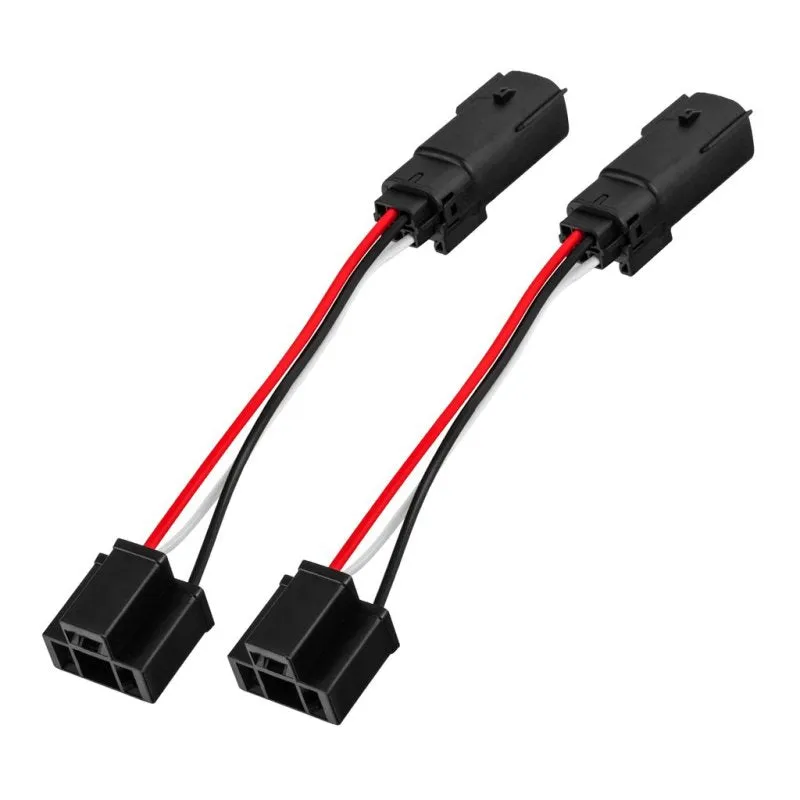

• JL/JT-specific plug-and-play wiring connectors

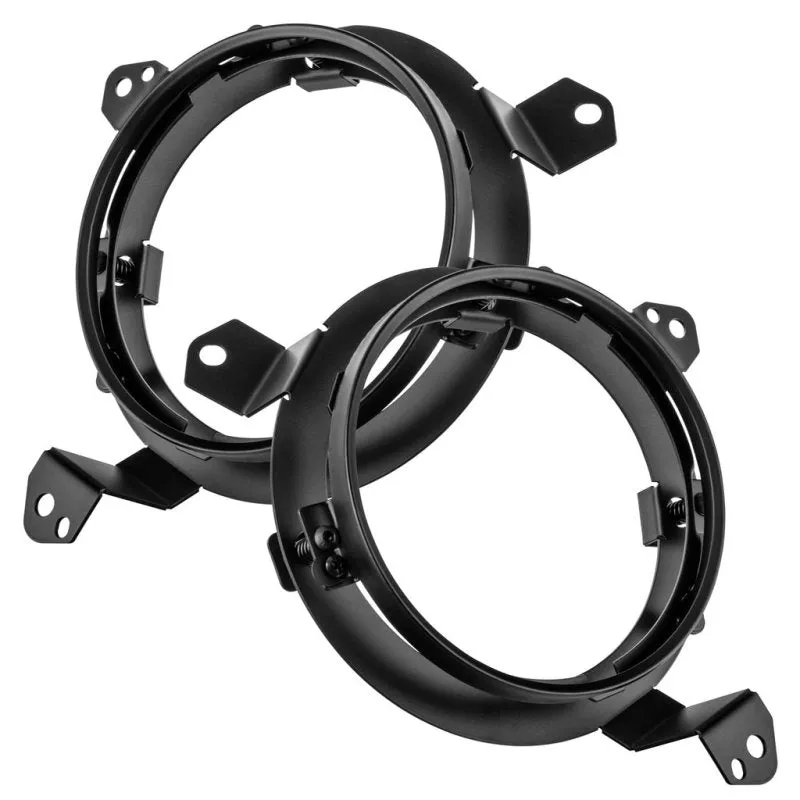

• Adjustment hardware for vertical and horizontal beam alignment
• Installation instructions

Ideal For:

These headlights are perfect for Jeep Wrangler and Gladiator owners who demand enhanced nighttime visibility, improved safety, and a modern lighting upgrade without the hassle of complex installation. Whether you use your Jeep for daily commuting, off-road adventures, or weekend cruising, these LED headlights provide reliable, bright illumination with a rugged design built to last.
