KC HiLiTES Gravity LED Fog Lights

2010–2018 Jeep Wrangler JK

Part #: 1497

Overview

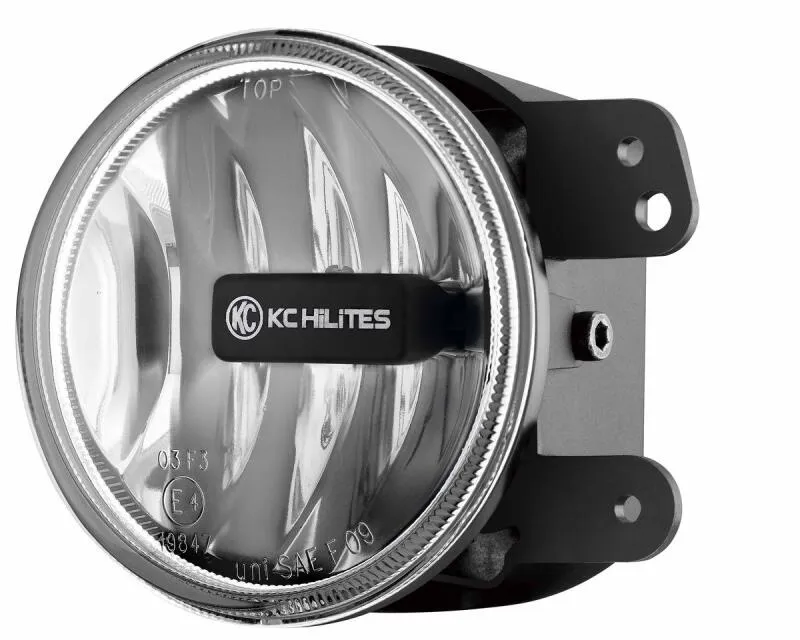

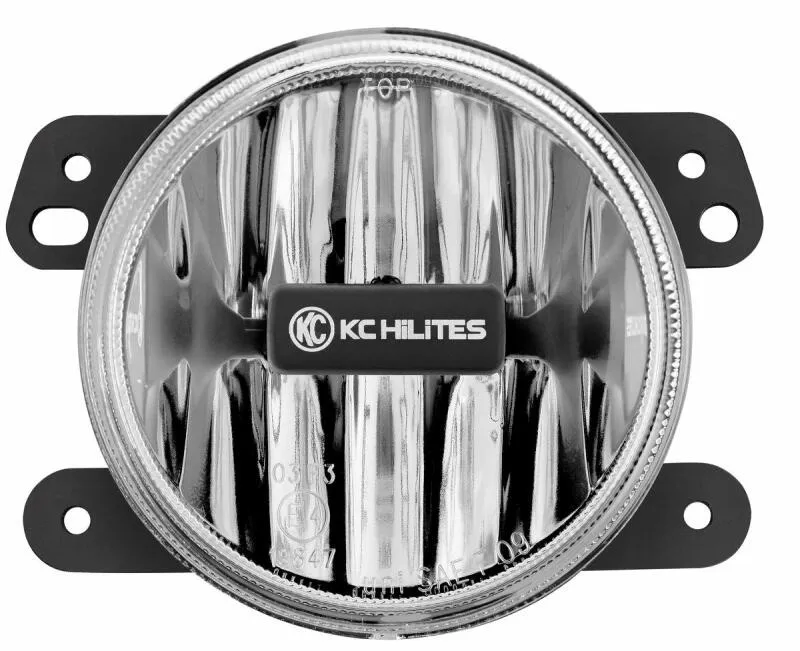

The KC HiLiTES 4" Gravity LED G4 SAE Fog Light is a premium lighting solution designed specifically for the Jeep Wrangler JK models from 2010 to 2018. Engineered to enhance visibility in adverse weather conditions such as fog, rain, snow, and dust, these fog lights deliver a powerful and precise beam pattern that improves safety and driving confidence. Ideal for off-road enthusiasts and daily drivers alike, these lights combine advanced LED technology with rugged construction to withstand the demands of both street and trail use.

With a lightweight magnesium housing and a shatter-resistant polycarbonate lens, the Gravity LED Fog Lights offer durability without compromising on performance. Their street-legal certification ensures compliance with SAE J583 and ECE-R19 standards, making them a reliable upgrade for Jeep Wrangler JK owners seeking superior fog lighting.

Key Features

KC HiLiTES Gravity LED Fog Lights incorporate cutting-edge technology and thoughtful design to deliver exceptional lighting performance and durability. Key features include:

• 10W 4" LED fog lights powered by high-quality CREE LEDs for bright, efficient illumination
• Patented Gravity Reflective Diode (GRD) system that precisely directs light into optical reflectors for a controlled, far-reaching beam
• Fog beam pattern optimized for low, wide-angle light to enhance short-range visibility in fog, dust, rain, and snow
• Lightweight magnesium housing for maximum heat dissipation and long-lasting performance
• Shatter-resistant polycarbonate lens designed to withstand harsh environments and impacts
• Street legal with SAE J583 and ECE-R19 compliance, ensuring safe and legal use on public roads
• Adjustable mounting system for precise horizontal aiming and consistent beam alignment
• IP69 rated for superior protection against water, dust, and debris
• Compatible with 9V to 32V electrical systems, suitable for a wide range of vehicle setups
• Direct bolt-on fitment to Jeep JK OE bumper and fog light harness for hassle-free installation

Construction & Design

The KC HiLiTES Gravity LED Fog Lights are built to endure the toughest conditions while maintaining optimal performance. The housing is crafted from high-grade magnesium, which offers excellent heat dissipation to keep the LEDs cool and extend their lifespan. This lightweight yet robust material also contributes to the overall durability of the light assembly.

The lens is made from shatter-resistant polycarbonate, providing strong protection against impacts from rocks, debris, and other hazards commonly encountered during off-road driving. The sealed design with an IP69 rating ensures the lights are fully protected against dust ingress and high-pressure water jets, making them suitable for all-weather use.

Performance & Sound

Each 4" Gravity LED Fog Light produces an impressive 866 raw lumens with a color temperature of 5000K, delivering bright, clear white light that enhances visibility without causing glare. The beam projects up to 245 meters with a lux intensity of 150 lx at 10 meters, providing excellent illumination for foggy or low-visibility conditions. Drawing only 0.74 amps per light, these LEDs are energy-efficient while maintaining high output.

Installation & Fitment

Designed specifically for the 2010–2018 Jeep Wrangler JK, these fog lights feature a direct bolt-on mounting system that aligns with the vehicle’s original equipment bumper and fog light harness. The innovative adjustable mount allows for easy horizontal aiming, ensuring the beam pattern can be precisely aligned for optimal road coverage and compliance with legal standards. Installation requires no modifications, making it a straightforward upgrade for Jeep owners.

What's Included

• One 4" Gravity LED G4 SAE Fog Light
• Adjustable mounting bracket compatible with Jeep JK OE bumper

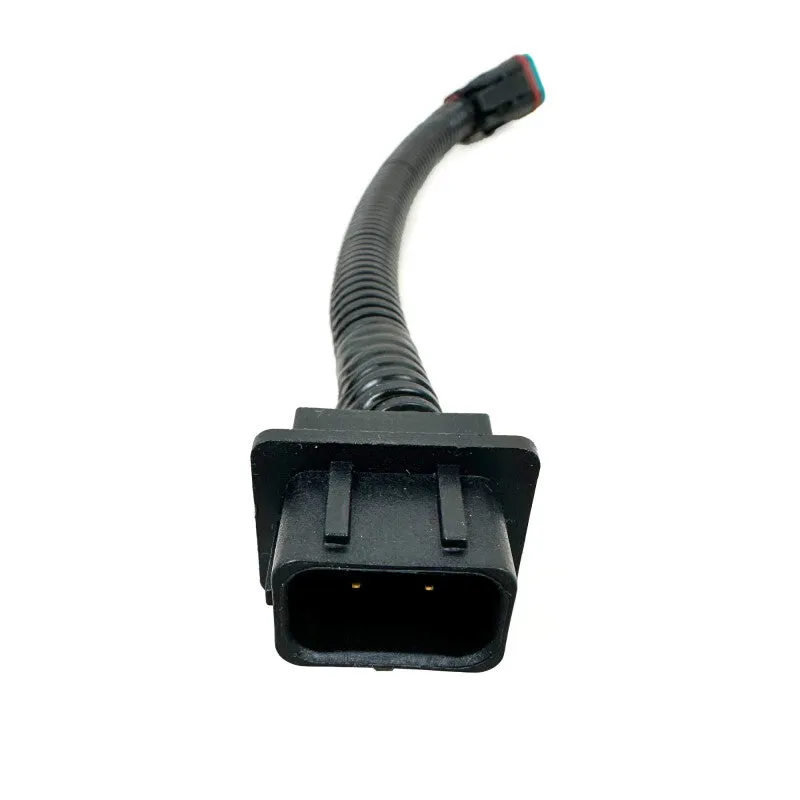

• Wiring harness adapter for seamless connection to OE fog light harness
• Installation hardware and instructions

Ideal For

This KC HiLiTES Gravity LED Fog Light is ideal for Jeep Wrangler JK owners who demand enhanced visibility and safety in challenging weather conditions. It suits off-road enthusiasts, daily commuters, and anyone looking to upgrade their factory fog lights with a durable, high-performance LED solution that is street legal and easy to install.
