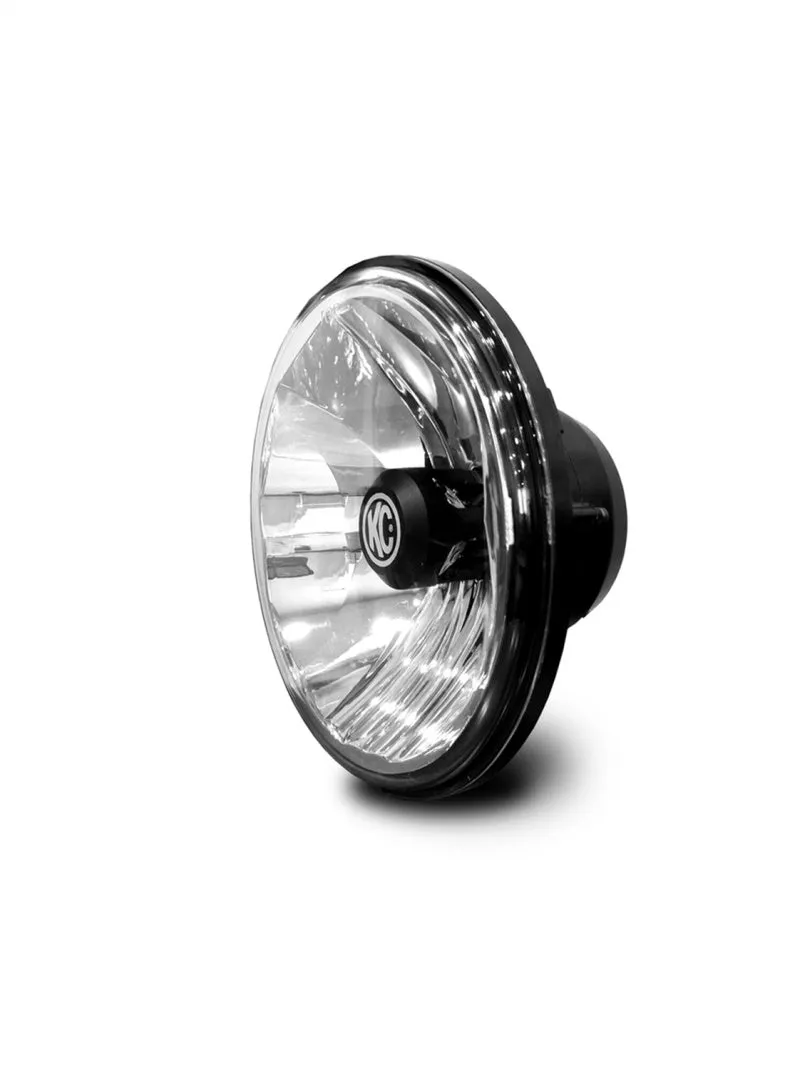

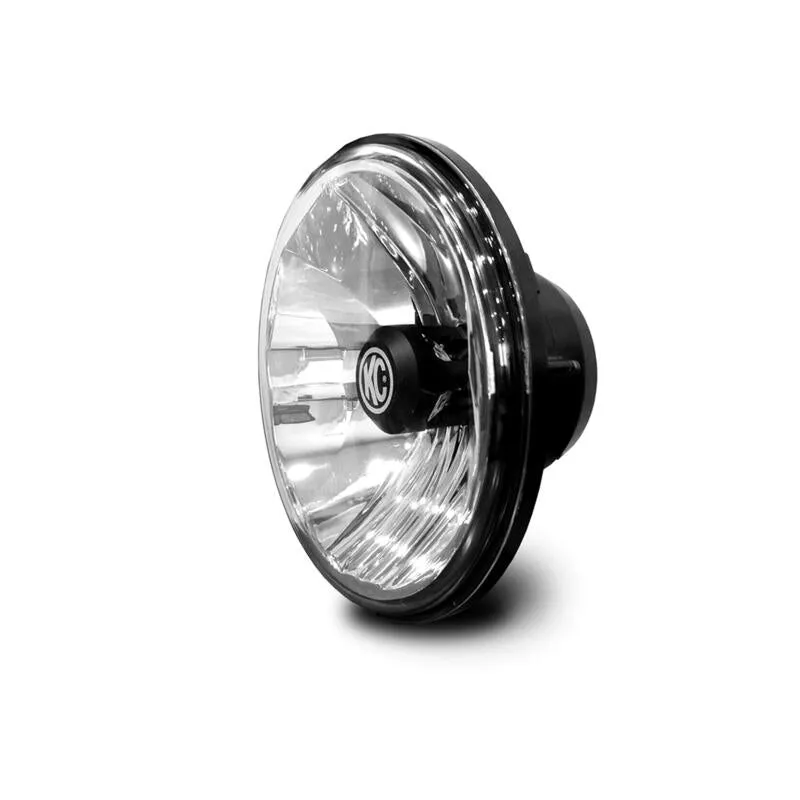

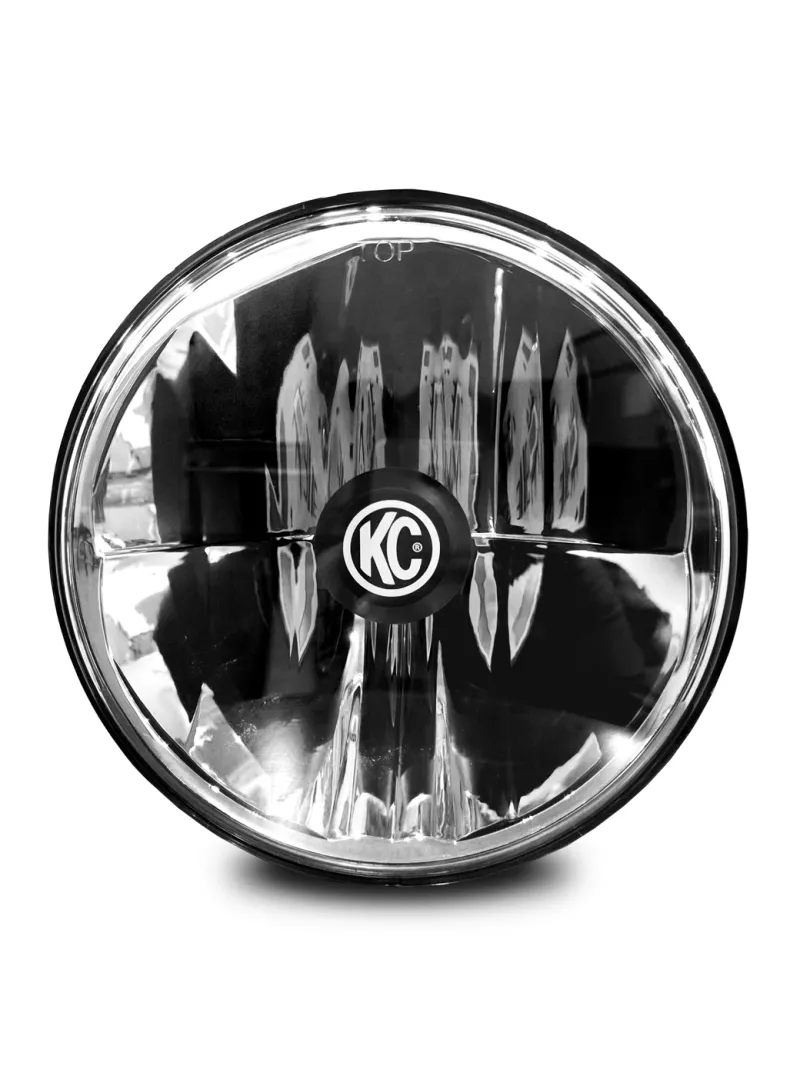

KC HiLiTES Gravity LED 7" Headlight

2007–2018 Jeep Wrangler JK

Part #: 4235

Overview

The KC HiLiTES Gravity LED 7" Headlight is a premium lighting upgrade designed specifically for the 2007–2018 Jeep Wrangler JK. Engineered to replace the factory headlights with a direct plug-and-play solution, this headlight delivers superior illumination and enhanced visibility for off-road adventures and everyday driving. Featuring advanced LED technology and precision optics, it offers a significant improvement in brightness and beam distance, ensuring safer nighttime driving and a modernized look for your Jeep.

Ideal for Jeep enthusiasts seeking reliable, high-performance lighting, the Gravity LED headlight combines durability with cutting-edge design to withstand harsh environments while providing clear, focused light output.

Key Features

KC HiLiTES Gravity LED headlights incorporate innovative technology and robust construction to deliver exceptional lighting performance. Key features include:

• 40W total power with separate Low Beam (18W), High Beam (22W), and Daytime Running Light (DRL) functions
• Patented Gravity Reflective Diode system that directs LED light into precision die-cast aluminum reflectors for maximum output
• Raw lumen output of 1,260 lm (Low Beam), 3,666 lm (High Beam), and 275 lm (DRL) for bright, clear illumination
• DOT compliant with SAE J851 and ECE-R112 certifications, ensuring legal road use
• Hard coated polycarbonate lens for superior impact resistance and protection against UV damage
• IP68 waterproof rating, making it fully sealed against dust and water ingress for rugged off-road conditions
• Color temperature of 5000K, producing a crisp white light that enhances visibility and reduces eye strain
• Plug-and-play H13 connector designed specifically for Jeep Wrangler JK models from 2007 to 2018, enabling easy installation without modifications
• Lux measurements of 415 lx (Low Beam) and 775 lx (High Beam) at 10 meters, with beam distances up to 557 meters on High Beam

Construction & Design

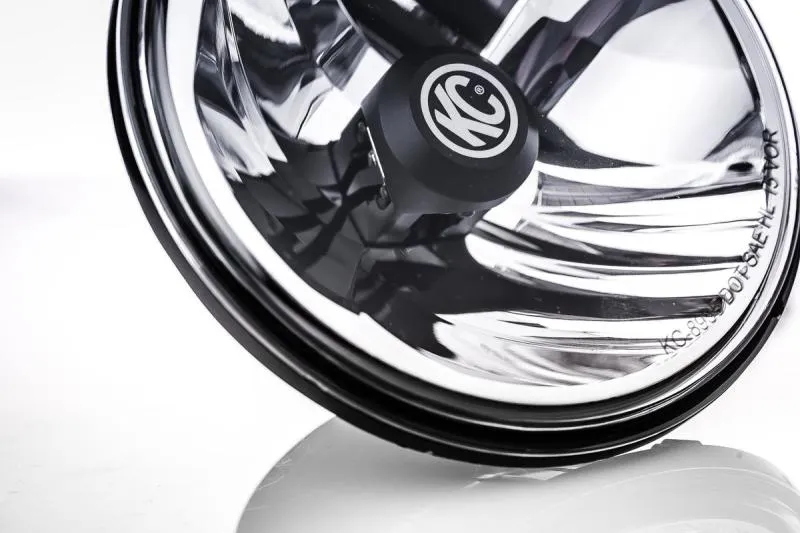

The Gravity LED 7" Headlight is built to endure the toughest driving conditions. Its housing is crafted from precision die-cast aluminum, providing excellent heat dissipation and structural strength. The lens is made from hard coated polycarbonate, which resists scratches and protects the internal components from environmental damage. KC HiLiTES’ engineered polished reflector optics maximize light projection and beam pattern accuracy, ensuring optimal road illumination without glare.

The entire assembly is sealed to IP68 standards, guaranteeing protection against dust, mud, and water, making it ideal for off-road use and adverse weather conditions.

Installation & Fitment

Installation is straightforward with the included plug-and-play H13 connector designed specifically for the Jeep Wrangler JK (2007–2018). This direct replacement headlight requires no cutting, splicing, or additional wiring, allowing for a hassle-free upgrade. The 7" size matches factory dimensions, ensuring a perfect fit and maintaining the vehicle’s original mounting points and alignment.

What's Included

• One KC HiLiTES Gravity LED 7" Headlight
• Plug-and-play H13 connector for Jeep Wrangler JK
• Installation instructions

Ideal For

This headlight is perfect for Jeep Wrangler JK owners who want to enhance nighttime visibility, improve safety, and upgrade their vehicle’s appearance with modern LED technology. It suits off-road enthusiasts, daily drivers, and anyone seeking a durable, high-performance lighting solution that meets DOT standards and withstands challenging environments.
