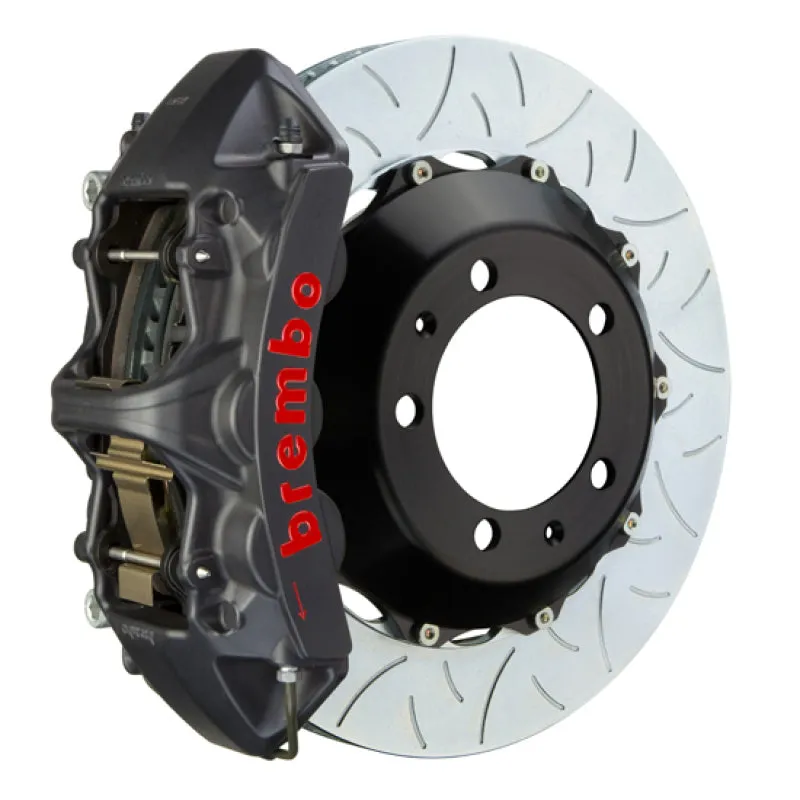

Brembo GTS Front Big Brake System

2007–2018 Jeep Wrangler JK (All Models)

Part #: 1N3.9024AS

Overview

The Brembo GTS Front Big Brake System is a high-performance upgrade designed specifically for the Jeep Wrangler JK models from 2007 to 2018. Engineered for drivers who demand superior braking power and reliability, this kit delivers exceptional stopping performance both on the street and the track. Featuring Brembo’s renowned 6-piston monobloc calipers and large 380mm slotted rotors, this system enhances braking precision, heat dissipation, and overall control, making it an ideal choice for off-road enthusiasts and performance drivers alike.

Whether navigating rugged terrain or spirited driving on paved roads, the Brembo GTS kit ensures consistent, fade-resistant braking performance, elevating your Jeep’s safety and driving confidence under demanding conditions.

Key Features

This Brembo GTS Front Big Brake System combines advanced engineering and premium materials to deliver a comprehensive braking solution:

• 6-piston monobloc aluminum calipers for maximum rigidity and consistent braking force
• 380mm diameter, 34mm thick two-piece floating rotors with slotted and cross-drilled design for superior heat dissipation
• Exclusive venting system reducing thermal shock-related cracking by up to 40%
• High-performance Brembo FM1000 brake pads optimized for excellent friction and durability
• Proprietary stainless steel braided brake lines by Goodridge for enhanced durability and improved pedal feel
• Corrosion-resistant plating on rotors for long-lasting performance and appearance
• Precision-engineered CNC billet caliper adapters and all necessary hardware included for seamless installation
• Radial mount caliper design for improved stiffness and brake modulation
• Inner pressure seal pistons with OEM-approved dust boots for reliable operation and longevity

Construction & Design

The Brembo GTS system features monobloc calipers machined from a single billet of cast aluminum, providing exceptional structural integrity and reducing flex under heavy braking. This design ensures consistent pad contact and superior pedal feel. The rotors are crafted from an advanced high carbon alloy with a corrosion-resistant plating, enhancing durability and resistance to wear.

The two-piece floating rotor design incorporates a vented curved vane structure with 48 vanes, optimizing airflow to maintain cooler operating temperatures. The slotted and cross-drilled rotor surfaces facilitate rapid heat dissipation while effectively removing brake dust and gases, maintaining consistent braking performance even during extended use.

Installation & Fitment

This front big brake kit is engineered as a direct fit upgrade for all Jeep Wrangler JK models from 2007 through 2018. The package includes all necessary hardware, including Brembo-engineered CNC billet caliper adapters, ensuring a straightforward installation process without the need for additional modifications. The radial mount calipers bolt directly to the factory mounting points, allowing for a clean and secure fitment.

What's Included

• Two 6-piston monobloc front calipers (black finish)
• Two 380x34mm two-piece floating slotted and cross-drilled rotors
• High-performance Brembo FM1000 brake pads
• Proprietary stainless steel braided brake lines by Goodridge
• CNC billet caliper adapters and all necessary mounting hardware
• Anti-rattle springs and installation accessories

Ideal For

This Brembo GTS Front Big Brake System is perfect for Jeep Wrangler JK owners seeking a significant upgrade in braking performance. It is especially suited for off-road enthusiasts, track day participants, and drivers who require enhanced stopping power and heat management for aggressive driving conditions. The system improves safety and control, making it an excellent choice for both daily driving and high-performance applications.
