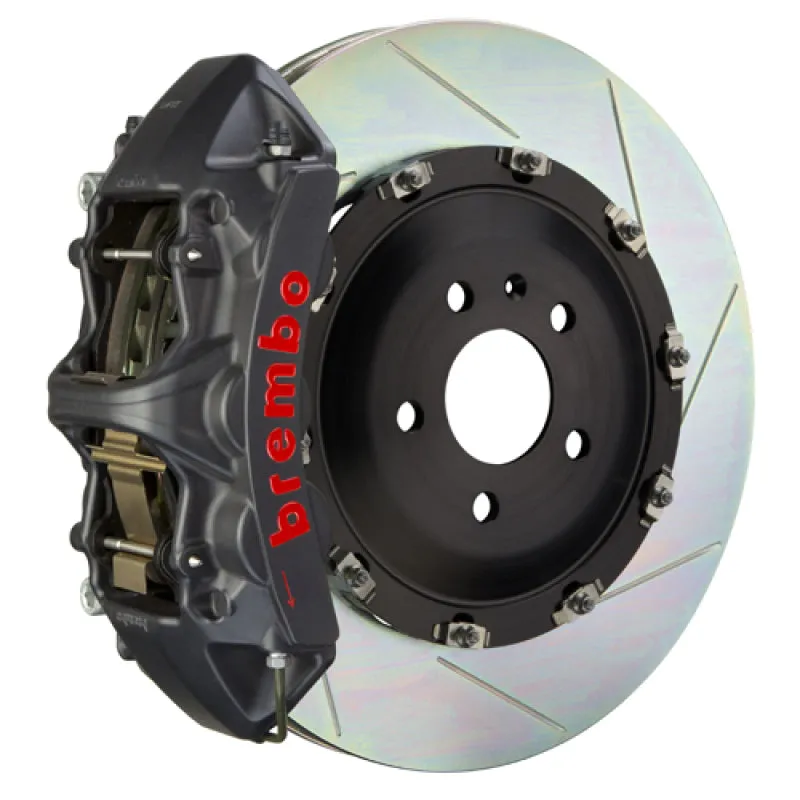

Brembo GTS Front Big Brake System

2005–2010 Chrysler 300, Dodge Magnum, Charger, Challenger 5.7L HEMI RWD

Part #: 1N2.9004AS

Overview

The Brembo GTS Front Big Brake System is a high-performance upgrade designed specifically for select rear-wheel-drive Chrysler and Dodge models equipped with the 5.7L HEMI engine from 2005 to 2010. Engineered for drivers who demand superior stopping power and consistent brake performance, this kit is ideal for both spirited street driving and track day use. Featuring Brembo’s renowned 6-piston monobloc calipers and large 380mm slotted rotors, the system delivers enhanced braking efficiency, improved heat dissipation, and precise pedal feel to elevate your vehicle’s overall braking capability.

Whether you’re upgrading your Chrysler 300, Dodge Magnum, Charger, or Challenger (excluding AWD and SRT8 variants), this Brembo kit offers a comprehensive solution that balances performance, durability, and style. It’s a direct-fit, pre-assembled front axle set designed to seamlessly replace your factory brakes with minimal hassle.

Key Features

This Brembo GTS brake system incorporates advanced technology and premium materials to ensure top-tier performance and reliability:

• 6-piston monobloc aluminum calipers for exceptional rigidity and consistent braking force
• 380mm diameter, 34mm thick two-piece floating rotors with slotted and cross-drilled design for superior heat dissipation
• Exclusive venting system reduces thermal shock cracking risk by up to 40%
• High-performance Brembo FM1000 brake pads formulated for optimal friction and durability
• Proprietary stainless steel braided brake lines by Goodridge for enhanced brake feel and reliability
• Corrosion-resistant plating on rotors to extend service life and maintain appearance
• Precision-engineered CNC billet caliper adapters and all necessary hardware included for straightforward installation
• Radial mount calipers with inner pressure seal pistons and OEM-approved dust boots for long-term durability
• Stylish design that enhances the visual appeal of your vehicle’s front end

Construction & Design

Brembo’s GTS system features monobloc calipers machined from a single billet of cast aluminum, providing unmatched stiffness and reducing flex under heavy braking. This design ensures consistent pad contact and improved pedal modulation. The rotors are crafted from an advanced high-carbon alloy, which offers excellent thermal conductivity and resistance to wear. Their two-piece floating construction allows for thermal expansion without warping, while the curved 48-vane venting design maximizes airflow to keep temperatures in check during demanding driving conditions.

The cross-drilled and slotted rotor surfaces not only improve heat dissipation but also help evacuate brake dust and gases, maintaining clean pad contact and preventing brake fade. The entire system is finished with corrosion-resistant plating to protect against environmental damage and maintain a professional appearance over time.

Installation & Fitment

This Brembo GTS Front Big Brake System is a direct fit for the following vehicles equipped with the 5.7L HEMI engine and rear-wheel drive:

• 2005–2008 Dodge Magnum (excluding AWD and SRT8 models)
• 2005–2010 Chrysler 300 / 300C (excluding AWD and SRT8 models)
• 2006–2010 Dodge Charger (excluding AWD and SRT8 models)
• 2009–2010 Dodge Challenger (excluding AWD and SRT8 models)

The kit comes pre-assembled with all necessary hardware, including Brembo-engineered CNC billet caliper adapters and stainless steel braided brake lines, ensuring a smooth installation process. No major modifications are required, making it an ideal upgrade for enthusiasts seeking enhanced braking performance without extensive vehicle alterations.

What's Included

• Two 6-piston monobloc front calipers (cast aluminum, radial mount)
• Two 380x34mm (15") two-piece floating slotted and cross-drilled rotors
• High-performance Brembo FM1000 brake pads
• Proprietary stainless steel braided brake lines by Goodridge
• CNC billet caliper adapters and all mounting hardware
• Anti-rattle springs and OEM-approved dust boots

Ideal For

This Brembo GTS Front Big Brake System is perfect for performance enthusiasts who drive their Chrysler or Dodge vehicles aggressively on the street or track. It is especially suited for those seeking improved stopping power, better brake modulation, and enhanced heat management over factory brakes. Whether you participate in track days, autocross, or simply want a safer, more responsive braking experience, this kit offers a reliable and stylish upgrade.
