Belltech Performance Handling Kit

2019–2024 Ram 1500 (3.6L V6, 5.7L Hemi)

Part #: 1063HK

Overview

The Belltech Performance Handling Kit is expertly engineered for 2019 through 2024 Ram 1500 models, including popular trims such as Big Horn, Laramie, Rebel, and Tradesman. This kit offers a refined balance of lowered stance, enhanced handling, and preserved ride comfort, making it an ideal upgrade for Ram owners seeking improved vehicle dynamics and a more aggressive appearance.

By lowering the front suspension between 1" and 3" and the rear between 4" and 5", the kit significantly reduces the truck’s center of gravity. This results in improved cornering stability and increased driver confidence without compromising daily drivability. Whether your Ram 1500 is 2WD or 4WD, this comprehensive kit includes all necessary components for a smooth installation and alignment, maintaining factory suspension geometry and tire wear characteristics.

Key Features

Designed with precision and durability in mind, the Belltech Performance Handling Kit enhances your Ram 1500’s stance and handling through advanced suspension technology and quality materials. Key features include:

• Customizable front lowering options of -1" or -3" to tailor ride height
• Rear lowering options of -4" or -5" for a balanced, aggressive look

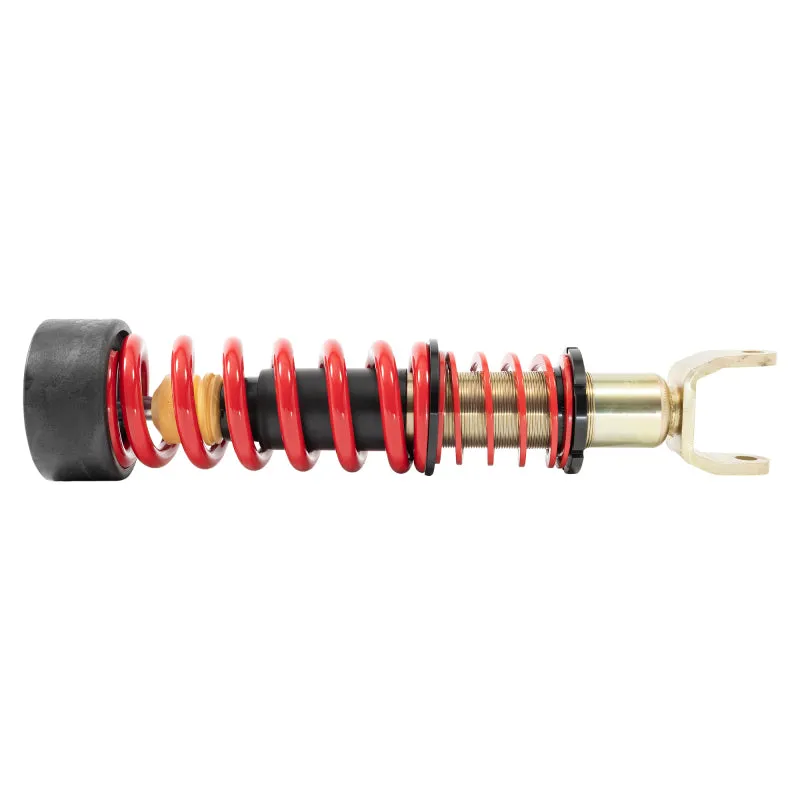

• Large bodied 2.4" (60mm) preset front Street Performance dampers for superior control
• Large bodied 2.2" (55mm) preset rear Street Performance shocks engineered for ride quality
• 1-3/8" diameter solid front sway bar and 13/16" diameter hollow rear sway bar to reduce body roll
• Adjustable length heim joint end links for precise sway bar tuning
• Cold-formed steel springs and powder-coated spring spacers for durability and corrosion resistance
• 35mm independent rebound and compression valves for optimized damping performance
• Preserves original equipment suspension geometry to maintain handling and tire wear

Construction & Design

Belltech’s Performance Handling Kit is built from high-quality materials engineered to endure daily driving and spirited performance. The cold-formed steel springs provide consistent lowering while maintaining strength and longevity. Powder-coated spring spacers and components resist corrosion, ensuring long-lasting durability and a clean appearance.

The large diameter preset dampers and shocks are specifically tuned to complement the lowered suspension setup, delivering a smooth yet controlled ride. Adjustable heim joint end links allow fine-tuning of sway bar performance, enhancing cornering precision without sacrificing comfort. Every component integrates seamlessly with your Ram 1500’s existing suspension system, preserving factory geometry and ride characteristics.

Installation & Fitment

This kit is designed for straightforward installation on 2019 to 2024 Ram 1500 models, including both 2WD and 4WD variants. It ships in four boxes containing all necessary lowering components, installation hardware, and alignment parts to achieve the desired drop. Installation requires standard suspension tools and basic mechanical knowledge, with no major modifications needed.

Once installed, the kit maintains factory suspension geometry, ensuring proper alignment and tire wear. This makes it an ideal upgrade for Ram owners who want improved handling and aesthetics without compromising daily drivability.

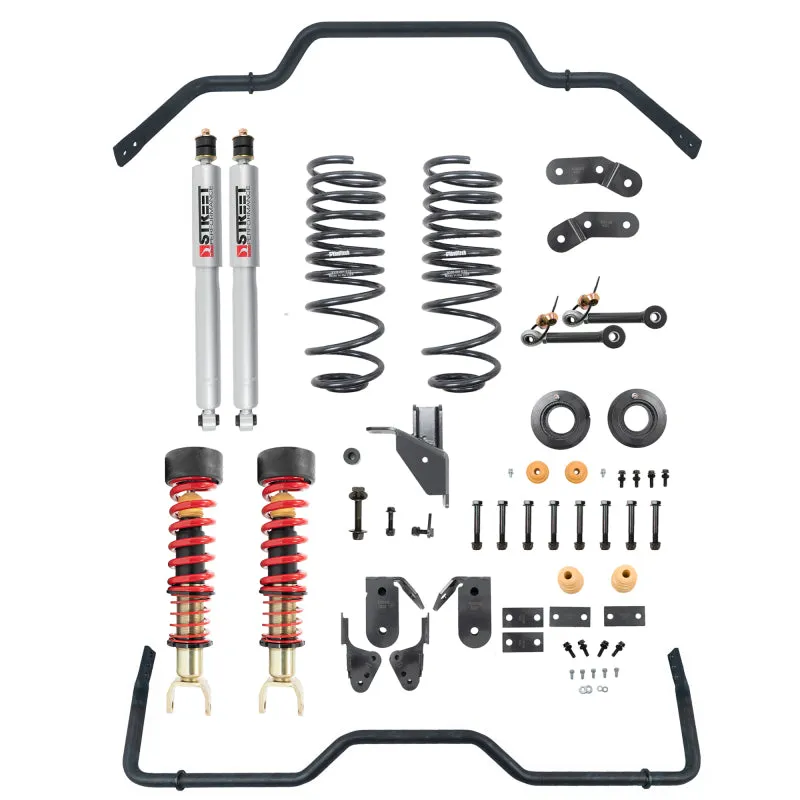

What's Included

• Front lowering components (choose -1" or -3" drop)
• Rear lowering components (choose -4" or -5" drop)
• 1-3/8" diameter solid front sway bar
• 13/16" diameter hollow rear sway bar
• 2.4" (60mm) preset front Street Performance dampers
• 2.2" (55mm) preset rear Street Performance shocks
• Adjustable length heim joint end links
• Steel, powder-coated spring spacers
• Installation hardware and alignment components

Ideal For

This performance handling kit is perfect for Ram 1500 owners who want to lower their truck for enhanced handling, a sportier stance, and a lower center of gravity without sacrificing ride comfort. It suits enthusiasts seeking a quality suspension upgrade that preserves OEM geometry and daily drivability. Whether your Ram is used for commuting, light towing, or weekend adventures, the Belltech Performance Handling Kit delivers proven reliability, improved vehicle dynamics, and aggressive style.
