Belltech Complete Lowering Kit with Street Performance Shocks

2019–2024 Ram 1500 3.6L V6 / 5.7L Hemi

Part #: 1062SPS

Overview

The Belltech Complete Lowering Kit with Street Performance Shocks is a precision-engineered suspension upgrade designed specifically for 2019 through 2024 Ram 1500 models, including both 2WD and 4WD configurations. This comprehensive kit offers a professional-grade lowering solution that enhances your truck’s aggressive stance, handling capabilities, and overall driving dynamics without sacrificing ride comfort or safety.

Ideal for Ram 1500 owners seeking a custom lowered look combined with improved cornering and a lower center of gravity, this kit maintains factory suspension geometry to ensure reliable performance and tire wear. Whether you’re upgrading for daily driving, weekend cruising, or light performance use, Belltech’s all-in-one kit simplifies installation and delivers a balanced blend of style, comfort, and control.

Key Features

Belltech’s lowering kit incorporates advanced components and design elements to provide a superior suspension upgrade experience:

• Customizable front lowering options of -3" or -4" and rear lowering options of -4" or -5" to tailor your Ram 1500’s stance
• Large-bodied 2.0" (50mm) preset front Street Performance struts and 2.2" (55mm) preset rear Street Performance shocks engineered for optimal ride quality

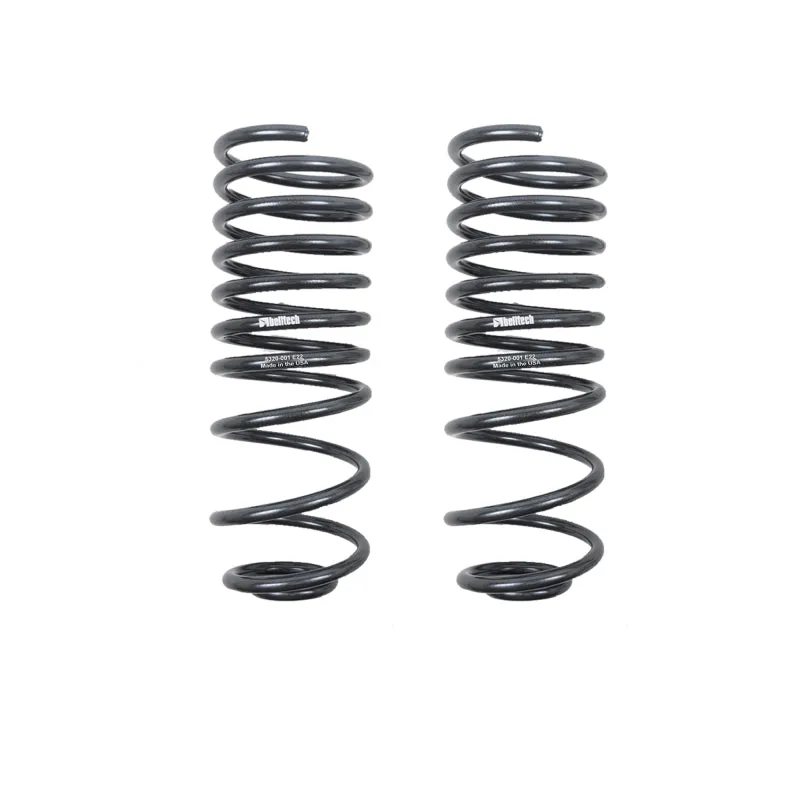

• Robust drop spindles and cold-formed steel springs designed to lower the center of gravity while preserving factory suspension geometry
• 1-3/8" diameter solid front sway bar and 13/16" diameter hollow rear sway bar for enhanced handling and reduced body roll
• Adjustable length heim joint end links with 35mm independent rebound and compression valves for precise suspension tuning
• Steel, powder-coated spring spacers and grade 8 installation hardware included for durability and corrosion resistance
• Engineered to maintain OEM ride quality and safety standards while delivering improved performance and a refined driving experience

Construction & Design

Crafted from high-quality materials, the Belltech Complete Lowering Kit is built to last and perform reliably under demanding conditions. The cold-formed steel springs provide consistent lowering without compromising strength or durability. Powder-coated components resist corrosion and wear, ensuring long-term protection against the elements.

The large-bodied preset shocks and struts are specifically tuned to complement the lowered suspension setup, delivering a smooth, controlled ride that balances comfort with performance. Drop spindles are precision-engineered to maintain proper alignment and suspension geometry, preventing premature tire wear and preserving the Ram 1500’s handling characteristics.

Every component undergoes rigorous testing to meet Belltech’s stringent quality standards, ensuring your truck performs safely and confidently on the road.

Installation & Fitment

The Belltech Complete Lowering Kit is designed for straightforward installation on 2019–2024 Ram 1500 2WD and 4WD models, including trims such as Big Horn, HFE, Laramie, Laramie Longhorn (2019–2021), Limited, Limited Longhorn (2021–2024), Lone Star, Longhorn (2021), Rebel, Special Service (2020–2022), and Tradesman. The kit ships in four boxes and includes all necessary hardware and alignment components to achieve the advertised lowering heights.

Installation requires basic suspension knowledge and common tools. Belltech provides detailed instructions and all required grade 8 hardware, making the process as smooth as possible without the need for major modifications. The kit preserves factory suspension geometry to maintain safe handling and ride quality.

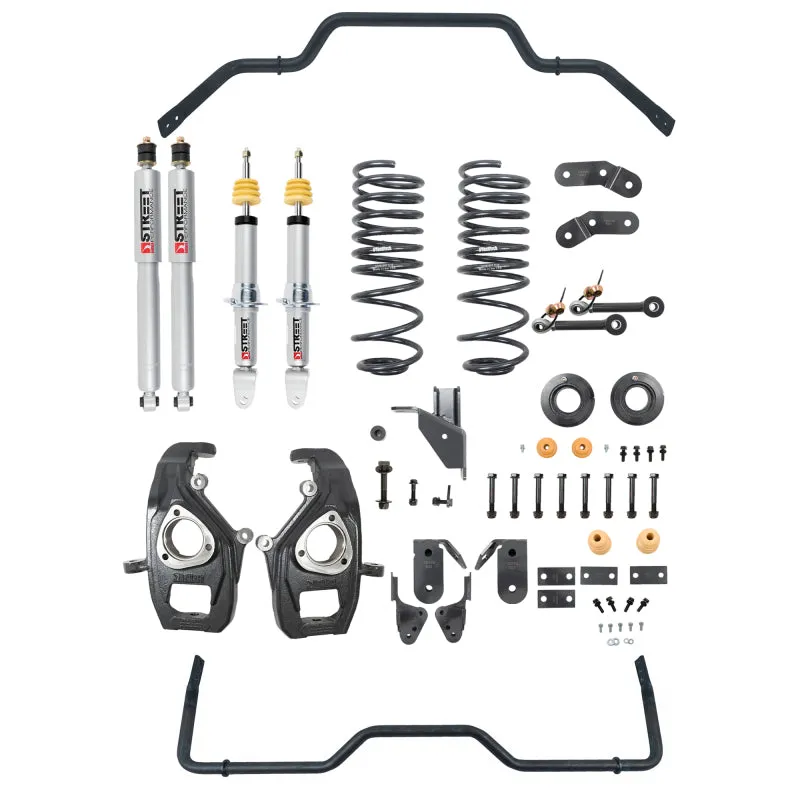

What's Included

• Front lowering components with choice of -3" or -4" drop
• Rear lowering components with choice of -4" or -5" drop
• Large-bodied 2.0" preset front Street Performance struts
• Large-bodied 2.2" preset rear Street Performance shocks
• 1-3/8" diameter solid front sway bar
• 13/16" diameter hollow rear sway bar
• Adjustable length heim joint end links
• Steel, powder-coated spring spacers
• Grade 8 installation hardware and alignment pieces
• Robust drop spindles

Ideal For

This lowering kit is perfect for Ram 1500 owners who want to enhance their truck’s appearance and handling without compromising ride comfort or safety. It suits enthusiasts looking for a reliable, professionally engineered lowering solution that fits a wide range of Ram 1500 trims and model years. Whether used for daily driving, weekend cruising, or light performance applications, this kit offers a balanced upgrade that improves both style and driving dynamics.
