ACT XT/Race Sprung 4 Pad Clutch Kit: Dodge Neon SRT-4 (2003-2005)

ACT XT/Race Sprung 4 Pad Clutch Kit

2003–2005 Dodge Neon SRT-4

DN3-XTG4

Overview:

The ACT XT/Race Sprung 4 Pad Clutch Kit is engineered specifically for the 2003–2005 Dodge Neon SRT-4, delivering exceptional performance for drivers seeking a robust and reliable clutch solution. Designed with the demanding enthusiast in mind, this kit features ACT’s Xtreme pressure plate and a 4-pad sprung race disc that balances aggressive engagement with durability. Whether you are upgrading for spirited street driving or track use, this clutch kit offers enhanced clamp load, improved pedal feel, and superior heat tolerance to handle increased power and torque.

Built to withstand harsh conditions and provide consistent performance, the ACT XT/Race clutch kit is ideal for drivers who want a clutch that can handle moderate to heavy pedal effort without sacrificing smooth operation or longevity.

Key Features:

This clutch kit incorporates advanced technology and design elements to optimize performance and reliability:

• Xtreme pressure plate with exclusive diaphragm design for increased clamp load and reduced deflection
• Four-stage heat-treated diaphragms for enhanced durability and consistent performance
• Precision cover stampings that improve rigidity and maintain consistent clamp force
• 4-pad spring-centered race disc engineered to damp torsional vibrations and reduce noise
• Wraparound spring windows and thicker retainer stampings for superior spring support and reliability
• Ceramic disc material designed for high heat tolerance and extended friction life
• Torque capacity of 695 ft-lbs, providing 120% more torque capacity over the original equipment
• Disc diameter of 9.4 inches (240 mm) suitable for smaller engines like the Neon SRT-4
• Input shaft diameter of 0.9375 inches for precise fitment
• 100% clamp load tested and dynamically computer balanced for smooth operation at high RPM

Construction & Design:

The ACT XT/Race Sprung 4 Pad Clutch Kit is meticulously engineered with high-quality materials and precision manufacturing processes. The Xtreme pressure plate features a unique diaphragm spring design that increases clamp load while minimizing deflection, which helps extend clutch life and improve pedal feel. Each diaphragm undergoes a rigorous four-stage heat treatment to ensure maximum strength and resistance to heat-induced fatigue.

The 4-pad sprung race disc utilizes ceramic friction material, which offers excellent heat tolerance and durability under aggressive driving conditions. The spring-centered design effectively dampens torsional vibrations, reducing noise and harshness during engagement. Additionally, the wraparound spring windows and reinforced retainer stampings provide enhanced spring support, reducing stress concentrations and increasing overall reliability.

Performance & Sound

This clutch kit delivers a more aggressive engagement compared to stock, resulting in quicker shifts and improved throttle response. While the engagement is harsher, it is well-suited for drivers who prioritize performance and faster gear changes. The spring-centered disc design helps to moderate gear rattle and torsional vibrations, contributing to a quieter operation than typical race clutches. Overall, the ACT XT/Race clutch balances performance with drivability for spirited street and light track use.

Installation & Fitment:

The ACT XT/Race Sprung 4 Pad Clutch Kit is a direct fit replacement for the 2003–2005 Dodge Neon SRT-4, designed to work with the factory input shaft diameter and bellhousing. Installation requires standard clutch replacement procedures and should be performed by a qualified technician to ensure proper alignment and engagement. No major modifications are necessary, making it a straightforward upgrade for enthusiasts looking to improve clutch performance and durability.

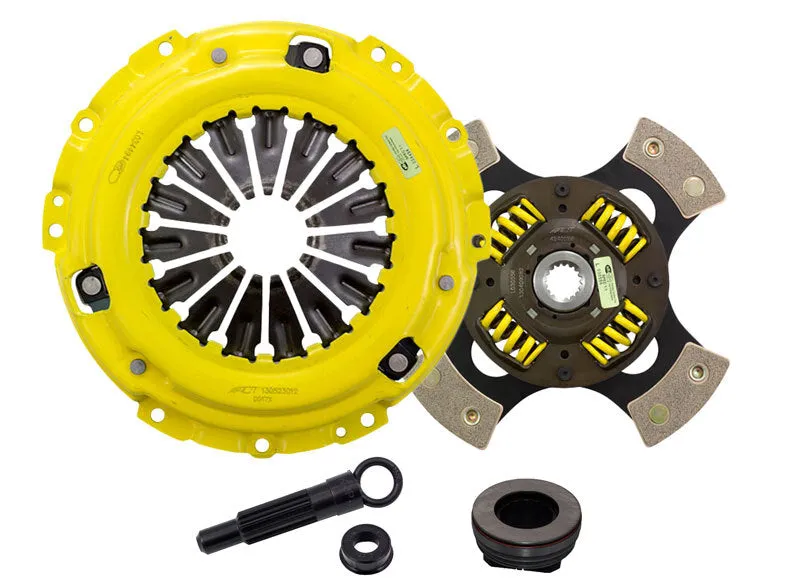

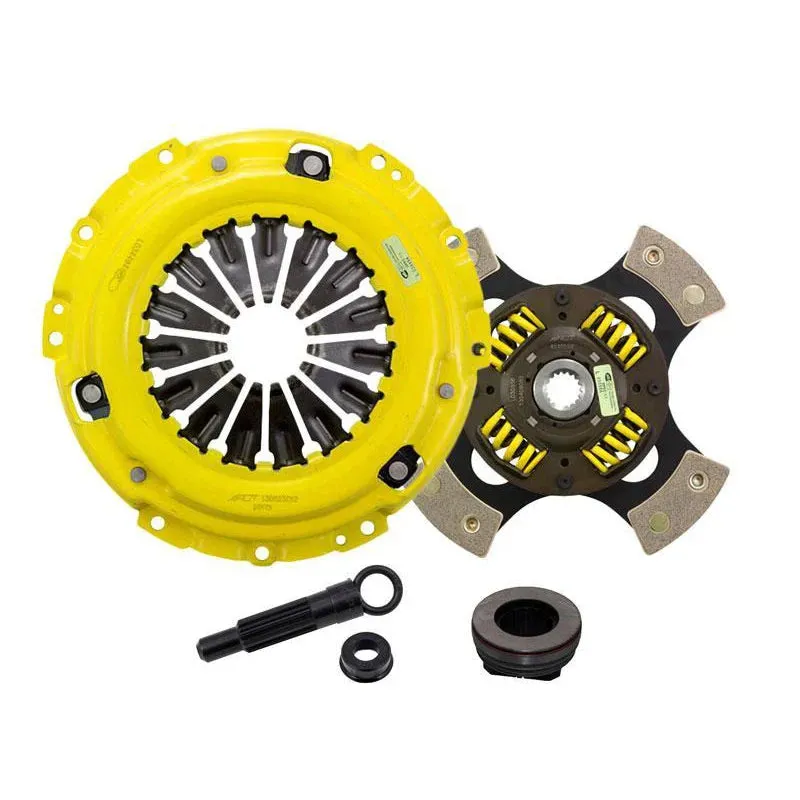

What's Included:

• 1 Xtreme pressure plate
• 1 4-pad sprung race ceramic clutch disc
• All necessary hardware for installation

Ideal For:

This clutch kit is perfect for Dodge Neon SRT-4 owners who demand a more aggressive clutch engagement and higher torque capacity than stock. It is well-suited for street performance, occasional track use, and drivers who want a durable clutch that can handle moderate to heavy pedal effort without sacrificing reliability or heat tolerance.
